   BH-240 Arch Sheet Roll Forming Machine

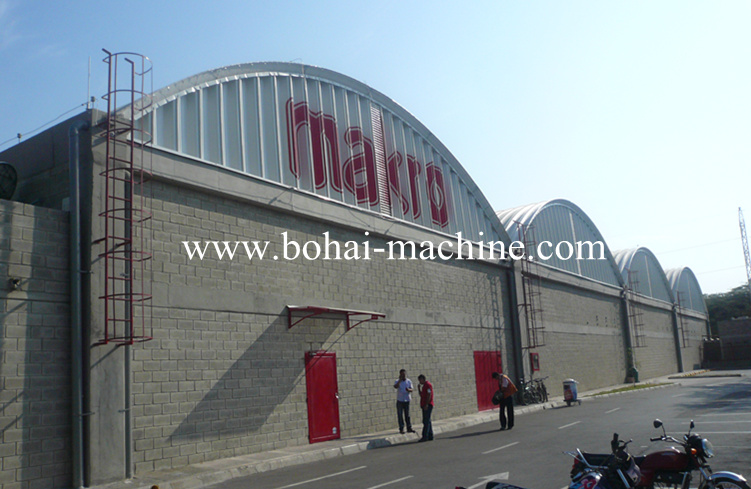

1220-800 Self-support Roof System

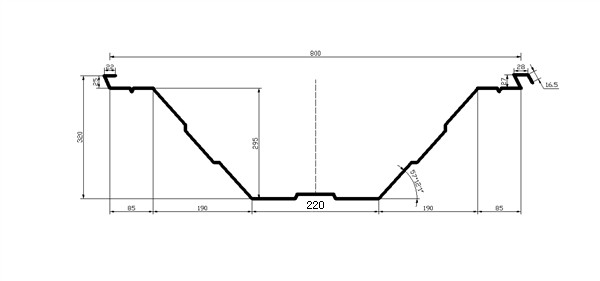

The drawing of BH-1220-800

Main Technical Specification:
Size: 11650mm × 2230mm × 2300mm
Total Weight: about 15000KG
MainMotorPower:18.9KW
Bending power: 3.0kw+1.1kwx2;
Sewing power: 2.2kw
Cutting power: 4.0kw;

Forming power: 7.5kw
Working Speed:  Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/min
Feeding Width: 1220mm
Effective Width: 800mm
Step of rollers: 14 steps
Controlling system: PLC &Manual
Material of cutting blade: Cr12 moV
Sheet operating factor: 65.5%
Thickness of the coil: 0.6-1.5mm
Material of roller shaft: 45# steel, galvanized
Material of rollers: 45# steel, quenched with hard chrome
Type of cutting: Roll-formed and length-set cutting
Electric Standard : 380V / 50 HZ / 3 PHASES
The depth of the groove:277mm
Proper span: ≤45m
Ship Container: 40’HQ x 1
Characteristics
1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
4. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
5. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
6. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
