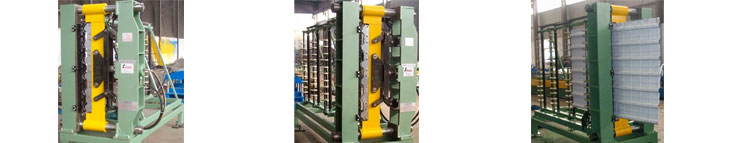

Home > Products center > Curving Machine
Main technical parameter:
Size: 2800x1400x1800(mm)
Install type: Vertical Type
Curving angle: 0-90 degree
Working speed: 90 degree/4min (adjust)
Forming rollers step: 5 groups
Thickness of material coils: 0.35-0.8mm
Reducer motor: WWJK75-25(1.5KW motor)
Minimum curving radius: 450mm (semi-circle radius 550mm)
Hydraulic station power: 11KW
Oil pump model: 63SCY-Y160L-4
Punch dies material: 40Cr, surface hardening and nitriding
Controlling system: PLC, touch screen.
